• Engine Model: YC4G200-50, Rear-mounted
• Manufacturer: Yuchai
• Engine Type: 4-cylinder in-line diesel engine
• Maximum Power: 215 hp at 2200 rpm
• Maximum Torque: 720 Nm at 1100 to 1400 rpm
• Engine Displacement: 5.2 liters
• Governed Speed: 80 km/h
• Gradeability: 20%
• Emission Standard: Euro 5 + EEV
• Cooling System: Electric fan with Smart Engine Temperature Control (ATS)
.jpg)
• Transmission: 5-speed manual gearbox
• Automatic gearbox (optional)
• Front Axle Weight Limit: 5 tons
• Rear Axle Weight Limit: 8 tons
• Wheelbase: 3830 mm
• Suspension System: Air suspension
• Braking System: Front and rear disc brakes with EBS (ABS/ASR/EBD)
• Fuel Tank: Stainless steel, 150 liters
• Tires: Tubeless 265/70R19.5
• Rims: Steel 7.5/19.5

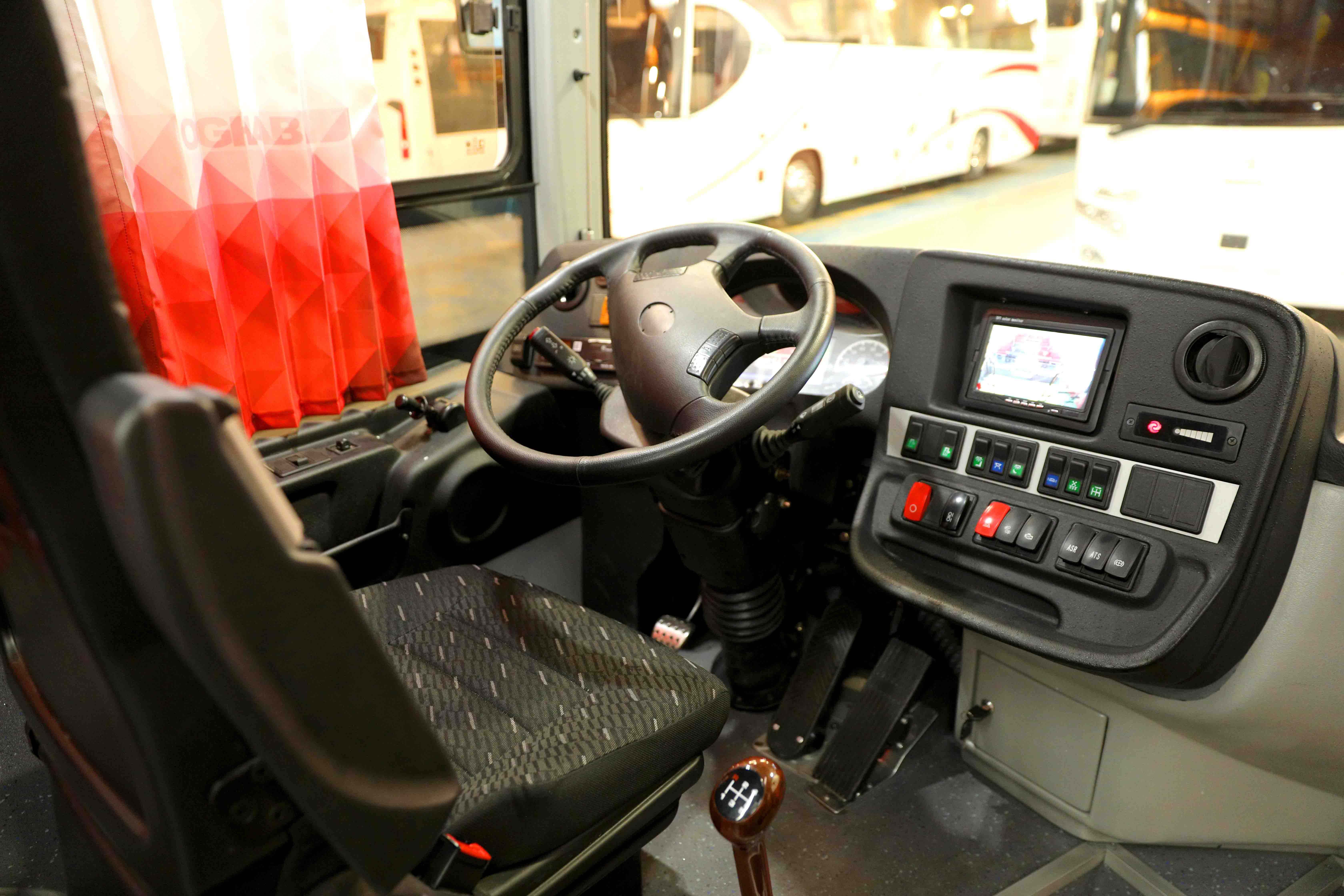

• Steering: Hydraulic, Bosch 8098, mechanically adjustable
• Turning Radius: 7 meters
.jpg)
• Robust, standards-compliant structure
• CO₂ shielded welding compliant with ISO 3834 standards
• Fully coated structure with zinc chromate primer and underbody insulation for corrosion protection

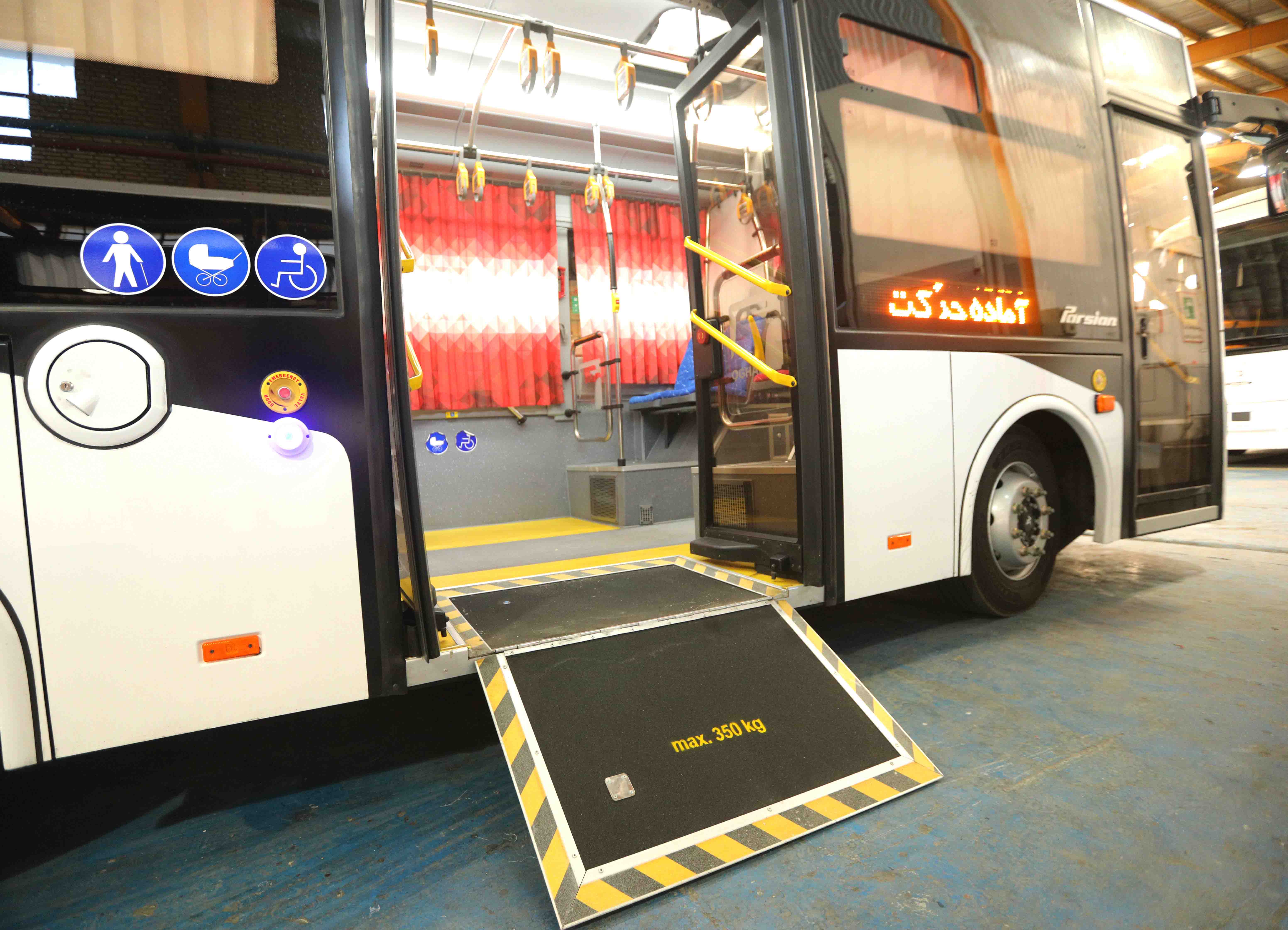

• Low-entry design for easy passenger boarding and alighting
• Body panels constructed from galvanized automotive-grade steel
• Chassis Structure: ST44 industrial steel
• Standards-compliant thermal and acoustic insulation for floor, walls, and ceiling
• Vehicle Lighting: Compliant with European R48 standard

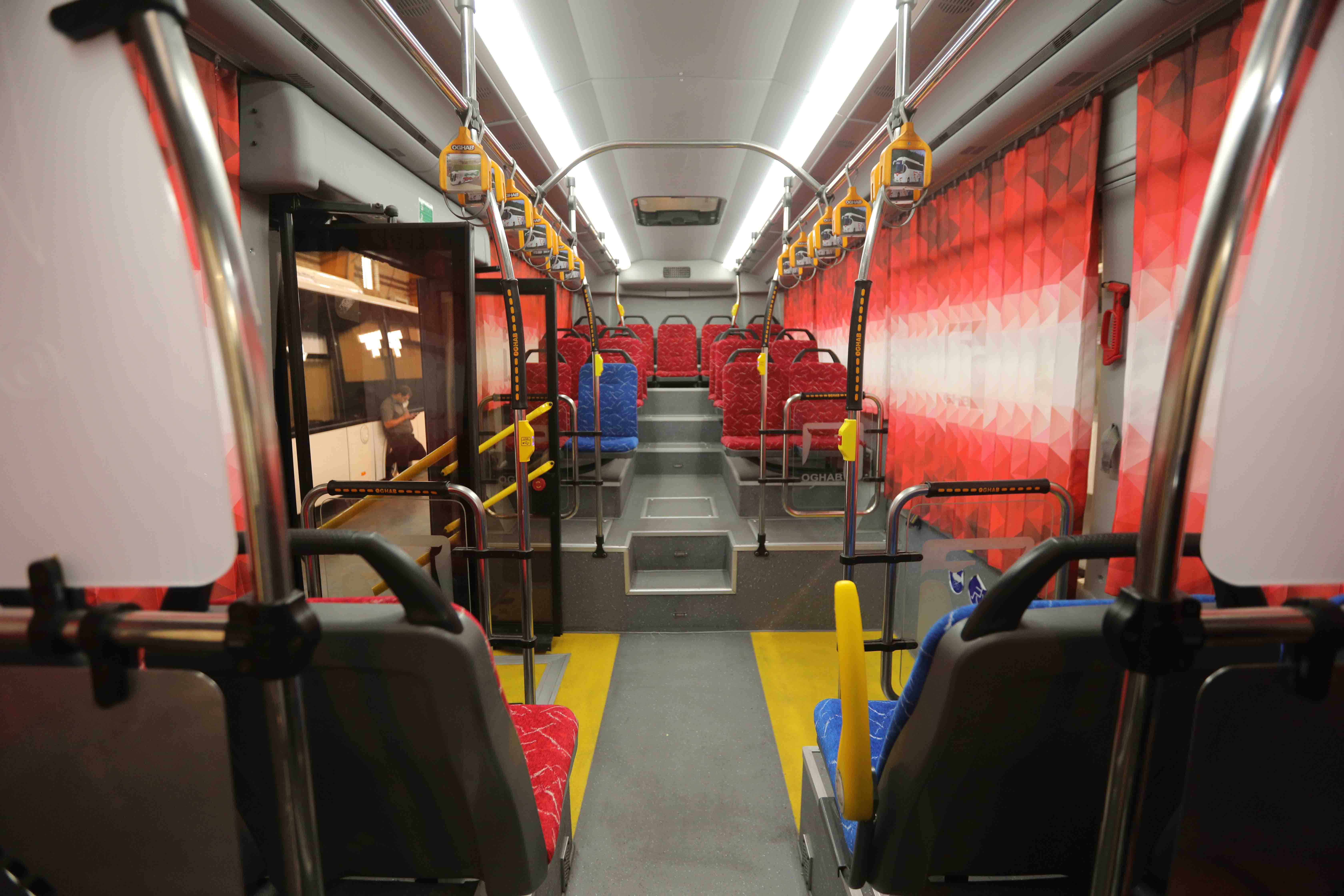

• Interior Lighting: LED with sufficient brightness
• Two 170 Ah 12-Volt maintenance-free batteries
• Two 150-amp 24-Volt alternators
• CAN bus system
• Water- and heat-resistant insulation for electrical components and cable harnesses
• Sealed fuse box, isolated from battery compartment, moisture- and dust-resistant
• Engine compartment automatic fire detection and suppression system
• Battery compartment fire alarm system
